Timberlok Structural Wood Screws
FastenMaster Timberlok Wood Screw Product Features and Benefits
• Requires no pre-drilling
• Self-countersinking design provides a flush installation
• Removable and reusable
• Engineered for increased strength and performance
• Strong pull down and holding power
• Corrosion-resistant
• Greatly reduced labor time
FastenMaster Timberlok Wood Screw Installation Instructions
• Use a 1/2" high torque, low RPM drill.
• Install Timberlok perpendicular to the log.
• Countersink the Timberlok a minimum of 1/4".

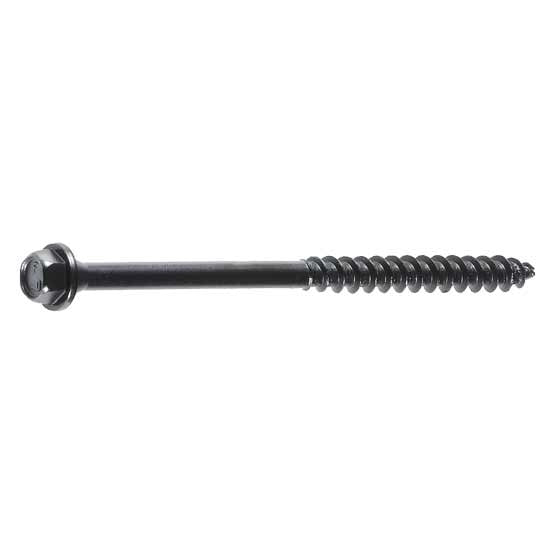

FastenMaster Timberlok Wood Screw Physical Data
• Available Sizes: 2 1/2", 4", 6", 8", 9", 10"
• Head Style: Hex
• Thread Length: 2"
• Thread Diameter: 0.25"
• Shank Diameter: 0.19"

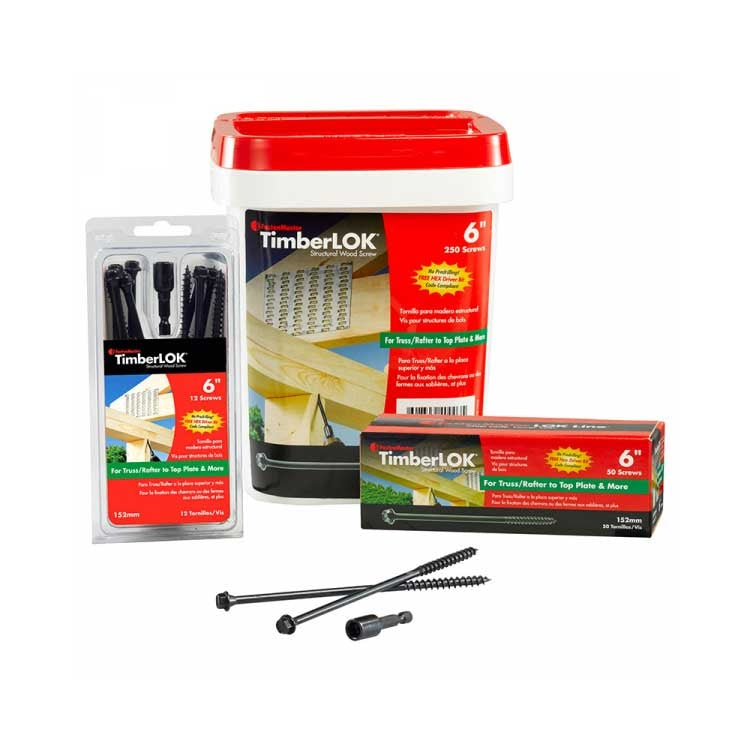

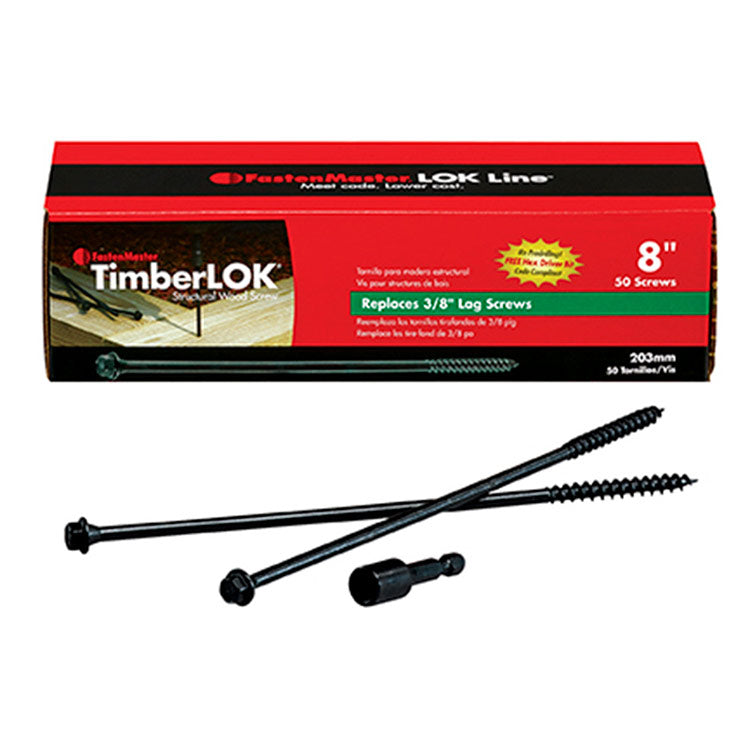

• All screw sizes are packaged 50/box. One hex bit per box is included.
FastenMasterTimberlok Wood Screw Resources
• FastenMaster Timberlok Catalog Detail Page
• Timberlok Guarantee of Performance
• ICC ES Evaluation Report
• Timberlok - Uses and Technical Details
• Timberlok - Truss to Top Plate Connection
• Timberlok - Uplift & Lateral Resistance Tech Guide
• Timberlok - Stud to Top & Bottom Plate Uplift Attachment Tech Guide
• Timberlok - Connecting Gamble Trusses to Top Wall Plate Tech Guide
• Timberlok - Connecting Drag Strut Trusses to Top Wall Plate Tech Guide
• Timberlok - Uplift & Lateral Strength Design for Wall to Rim Joists Tech Guide
• Timberlok - Top Plate Roll Resistance to Trusses and Rafters Attached to the Tops of Walls Tech Guide
• Timberlok - Pole Barn Header Connection Tech Guide
• Fastenmaster Fasteners- Safety Data Sheet
|
Product Questions
-
How are these different from the FastenMaster Olylog screws?
Timberlok and Olylog screws have the same specifications. The only difference is Olylog is packaged in higher quantities with log home construction in mind and Timberlok is packaged in lower quantities intended for more conventional use.
