Cedar Valley Shingle Panels

Cedar Valley’s One-Course Panel System is the ideal choice for your home or upscale project. No other exterior wall treatment, natural or man-made, protects your investment better. Lightweight, durable, easy to install and with the popular blind nail application, these single course siding panels are an excellent choice for cedar shingle projects.

Product Options:

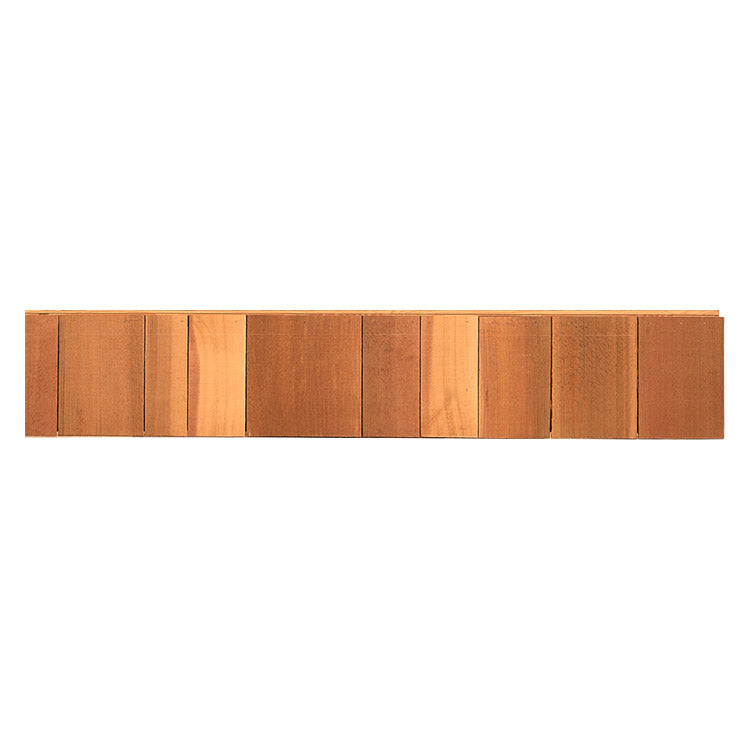

• 8' Even Buttline Open Keyway Panel - 7-1/8" Exposure

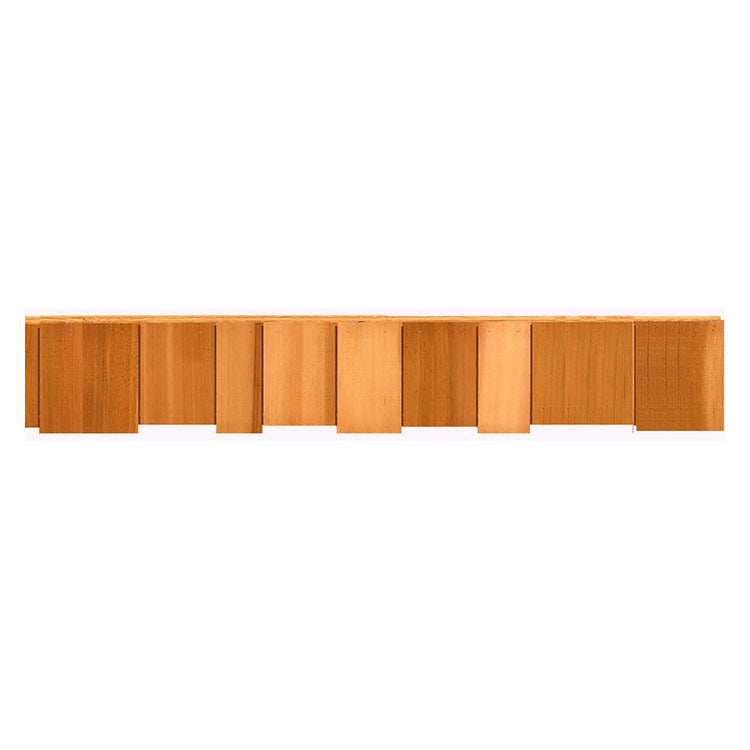

• 8' Staggered Buttline Open Keyway Panel - 7-1/8" Exposure

Features & Benefits of Cedar Valley Shingle Panels:

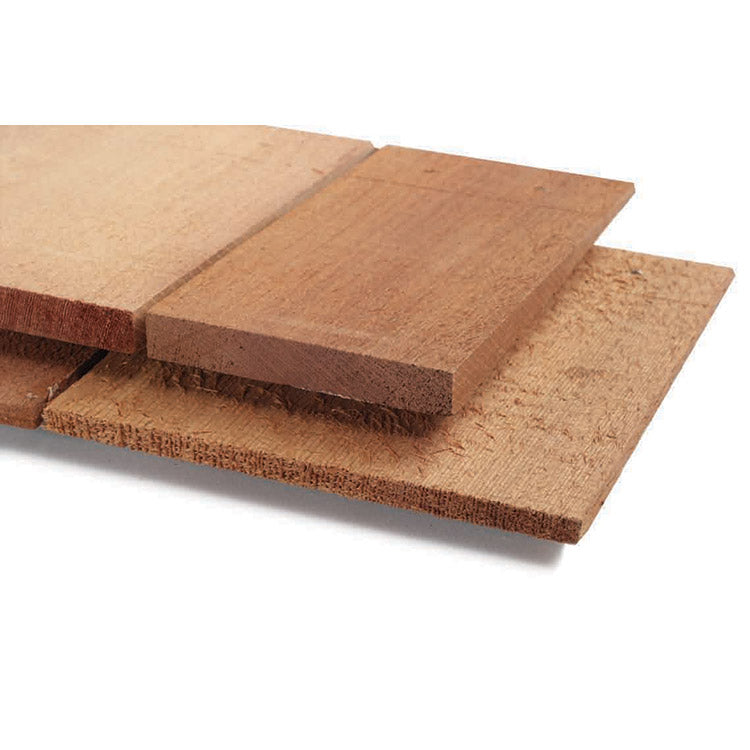

• 1/2" Thick Western Red Cedar Shingles, naturally resistant to pests and decay.
• Single course 8-foot panels install much quicker than individual shingles.
• Overlapping end joints - No Caulking
• Additional moisture & U.V. protection integrated into the panel
• Matching corners, wraps, radius flares & decorator shapes for a complete system,
• Certified to withstand winds over 200 mph
• 15 Year Standard Panel Warranty
• Available in hundreds of factory-finished stains and colors.

Product Specifications:
• Shingle Grade: #1 Grade Rebutted and Rejoined Western Red Cedar Shingles
• Drying: Kiln-Dried
• Length: 8' Panels
• Exposure: 7-1/8"
• Thickness: 1/2"

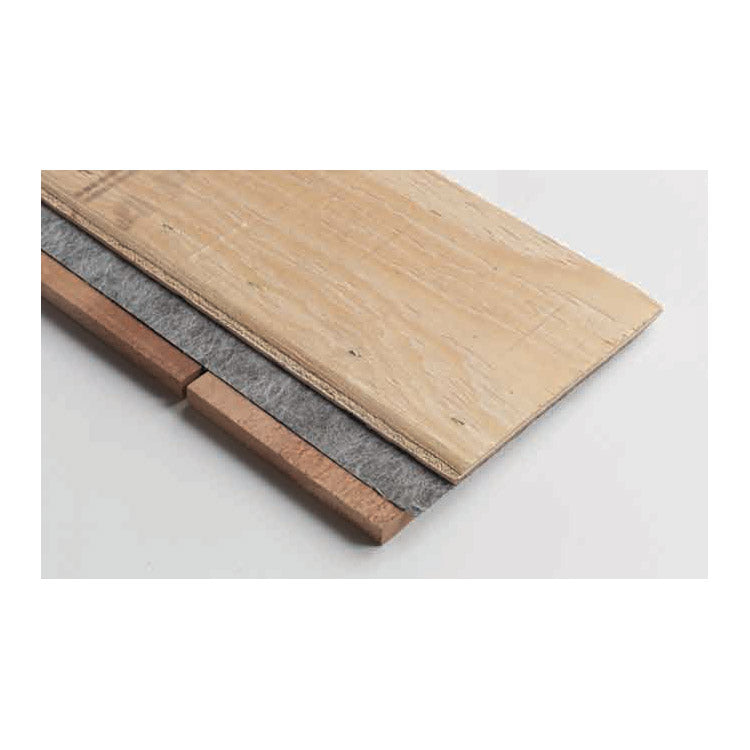

• Backer Materials: 11/32" Douglas Fir CCX Plywood and Premium Fiberglass Mat
• Shipping Options: LTL (Pallet) Shipping only.  Cedar Valley Panels are too long to ship by parcel carriers.

Coverage Rates:
Cedar Valley Shingle Panels with 7-1/8" Exposure measure 21 pieces per 100 square foot of wall coverage.

Panel Application:
Plan layout from lowest building corner after determining which corner type to be used. Panels should be applied to a nail able shear sheathing, over approved building paper in accordance with building codes. Span panels at least 2 stud spacings and vertical end joints should be staggered to join on stud.

Product Resources:
• Application Instructions
• Brochure for Cedar Valley Shingle Panels
• Cedar Valley Warranties Overview
• Cedar Valley Builder Flyer
