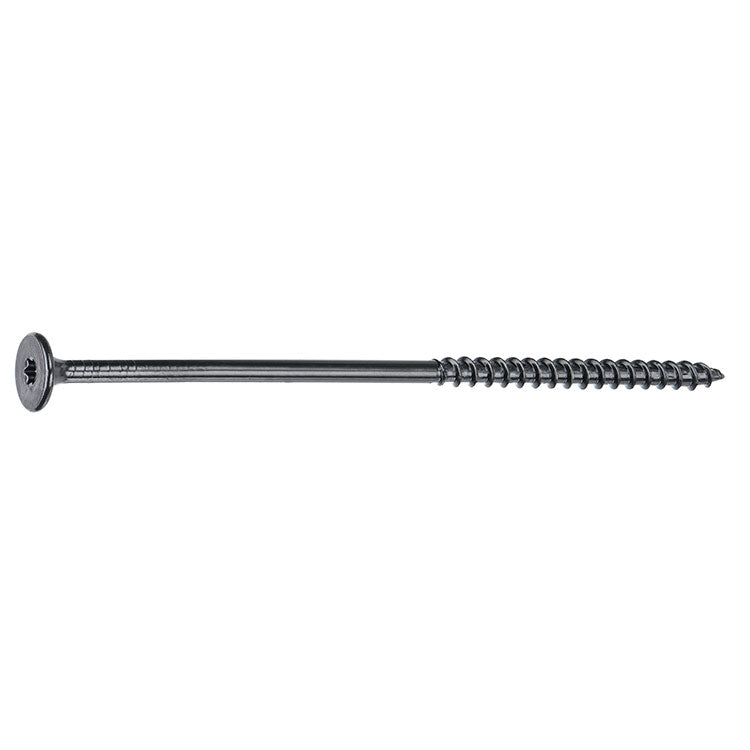

TruFast SIP TP Panel Fastener

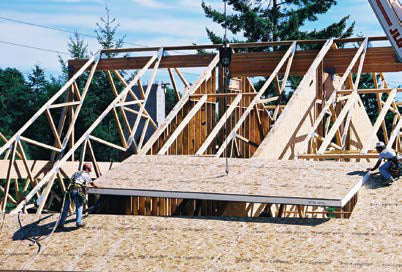

Featuring a large, pancake-style head and 6-lobe drive, the TruFast SIP TP Panel Fastener provides excellent bit engagement and pull-through resistance. Engineered for fast and easy installation of structural insulated panels (SIPs) and nail base panels, TruFast SIP fasteners drive quickly, smoothly, and securely without the need for a washer or predrilled holes.

TruFast SIP TP Panel Fastener Features:
• Case-hardened and tempered carbon steel for long-term durability and ease of installation
• Large diameter and low-profile head for excellent pull-through resistance without the need for a washer
• Eliminates “telegraphing” on shingles, metal panels, and other roofing materials
• 6-lobe internal drive offers excellent bit engagement, especially in high torque applications
• Coated in TRU-KOTE Epoxy E-coat (black)
• Large selection of lengths to ensure proper sizing to panel thickness
• Multiple code approvals and listings.
• Made in the USA.

TruFast SIP TP Panel Fastener Benefits:
• No Pre-drilling Required
• Easy Installation
• Durable
• Long-lasting
• Secure Engagement
• Eliminates “telegraphing”
• Wide Selection of Lengths

TruFast SIP TP Panel Fastener Physical Data
• Available Lengths: 2", 2-1/2", 3", 3-1/2", 4”, 4-1/2", 5", 5-1/2", 6”, 6-1/2", 7", 7-1/2", 8”, 8-1/2", 9”, 10”, 11”, 12”, 13”, 14”, 15”, 16”, 18"
• Head Style: T-30 6-lobe drive. Two (2) T-30 Driver Bits are included in each package.
• Thread Diameter: 0.255"
• Thread Length: Varies, 1.75" (min.)

TruFast SIP TP Panel Fastener Resources:
• TruFast SIP TP Panel Fasteners Product Info Guide
• TruFast SIP TP Fastener Detail Drawing
• TruFast Panel Fastener Continuous Insulation NTA Engineering Report
