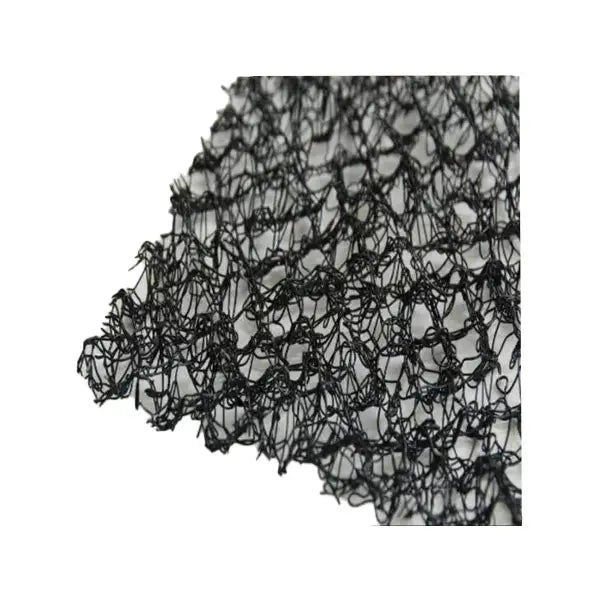

CedAir-Mat Material Close Up

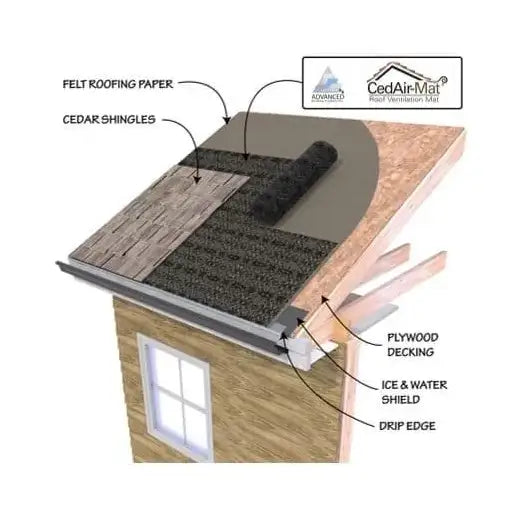

CedAir-Mat Installation Drawing

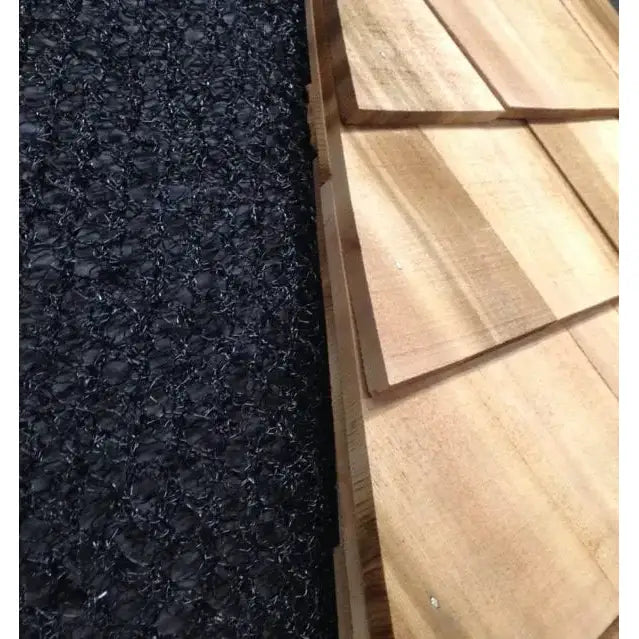

CedAir-Mat Up Close Installed

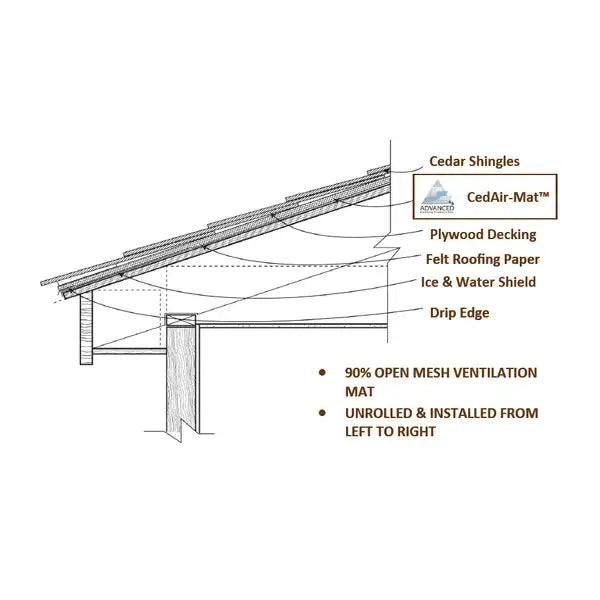

CedAir-Mat Cad Drawing

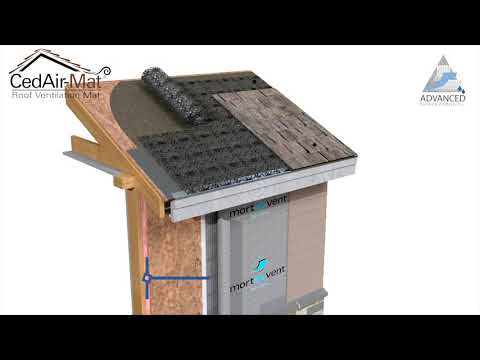

CedAir Mat Installation Video
Advance Building Products Residential Rendering

CedAir-Mat Roof Ventilation Mat

CedAir Roof Ventilation Mat is designed to help create an open structure for ventilation. It prolongs the life of the roof structure by reducing the adverse effects associated with moisture and water damage. CedAir-Mat is perfect for both residential and commercial roof applications.
SKU: CDRMAT
$189.95
By Advanced Building Products
View details
Details

CedAir Roof Ventilation Mat is designed to create an airspace cavity that will promote multi-directional air flow between the roofing material and the sheathing below. Using a thin nylon matrix profile, CedAir-Mat prolongs the life of the roof structure and membrane by reducing the adverse effects associated with moisture or water damage including mold, mildew, corrosion, and deterioration of the roofing material itself. CedAir-Mat is extremely flexible and conforms to any contoured surface or roofing material and is perfect for residential and commercial roof applications alike.

Features and Benefits:
• Creates an open structure for heat reduction and ventilation
• Prolongs the life of the membrane and roof structure
• Reduces sound transmission through panels
• Lightweight and easy to handle
• Bends and conforms to any type of contoured roof
• Maintains a thermal break between the roofing and sheathing
• Contributes to LEED Points
• 75% greater air flow compared to competitive products
• UV exposure for up to 60 days

Specifications
More Information

Installation Instruction:
• Install plywood roof sheathing onto rafters.
• Install roofing felt or ice dam protection membrane over sheathing. Check local codes and manufacturer's recommendations for specific requirements.
• Install CedAir-Mat over roofing felt, ice protection membrane, and metal edge flashing or drip edge. Ensure CedAir-Mat materials are installed flush against the edge of the flashing or drip edge. Carefully trim the cedar breather at all penetrations with a utility knife or scissors.
• When installing cedar or alternate material shingles, unroll CedAir-Mat horizontally just ahead of the shingles as they are installed. Tack or nail CedAir-Mat in place every three square feet. Do not overlap the CedAir-Mat material. Butt each course tightly against the previous course and at vertical seams.
• At ridge locations, extend CedAir-Mat material over the ridge and butt against the material on the opposite side of the roof. If a ridge vent is utilized, followed the manufacturer's recommendations for underlayment material installation.
• Apply roofing materials using the manufacturer's recommended fasteners and instructions, allowing for the additional 3/8" thickness of the CedAir-Mat material.

Product Guides:
• CedAir-Mat Data Sheet
• CedAir-Mat Brochure
• CedAir-Mat Installation Guide
• CedAir-Mat Guide Specification
• CedAir-Mat Article Information Sheet
• CedAir-Mat Manfuacturers Warranty
Reviews
Product Questions

Product Questions

  • What is the best installation method for CedAir-Mat when using cedar shingles?

    When installing cedar or alternate material shingles, unroll CedAir-Mat horizontally just ahead of the shingles as they are installed. Tack or nail the CedAir-Mat in place every three square feet. Do not overlap the CedAir-Mat material. Butt each course tightly against the previous course and at vertical seams.

  • Can you use the CedAir-Mat for commercial, as well as residential use?

    Yes, it is perfect for both commercial and residential roof applications.  It is extremely flexible and conforms to any contoured surface or roofing material.

  • What does the CedAir Ventilation Mat do?

    The CedAir-Mat Helps reduce the effects associated with moisture and water damage including mold, mildew, corrosion, and deterioration of the roofing material itself by creating an open ventilation cavity.
